10 Pairs 30A Solar Panel Connectors - IP67 Waterproof MC4 Male & Female PV Cable for Solar Power Systems - Perfect for RV, Home, and Off-Grid Solar Installations

Features:
Consisting of plug and socket with inner workings (+ & -)
Very robust, weatherproof and durable
Resistant to ultra-violet radiation
Particularly suitable for connecting cables thanks to the patented locking system.

Specification:
Insulation Material:PC/PA, black
Temperature Range: -40 C ~ +90 C
Contact Material: Copper, Sliver plated
Flame Class: UL94-VO or UL94-5VA
Suitable cable: 2.5mm2, 4mm2, 6mm2 (AWG14, AWG12, AWG10)
Pin dimension: 4.0 mm dia.
Contact resistance: ≤0.2mmΩ

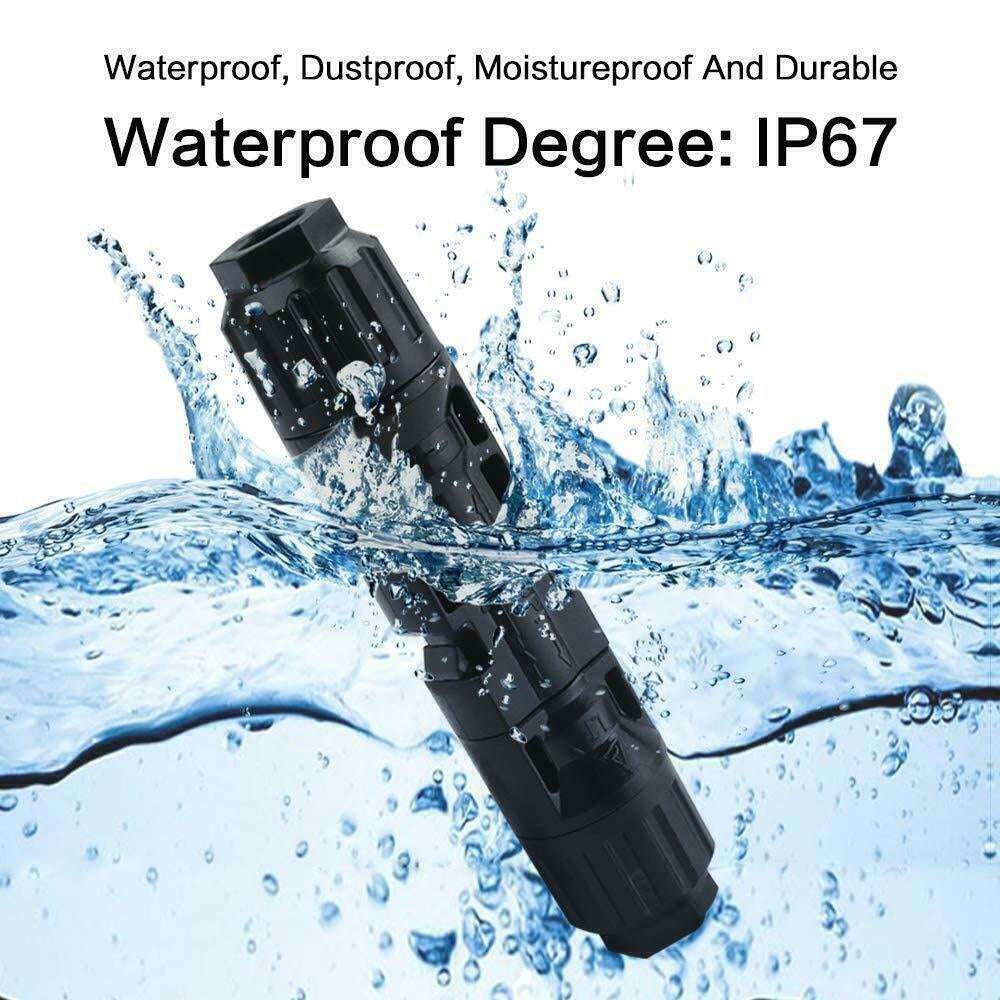

Waterproof degree: IP67
Flame class: UL94-VO
Withdrawal force: ≥50N
Insertion force: ≤50N
Insulation material: PPO + PA
Connecting system: crimping connection
Contact material: copper, tin plated
Temperature range: -40℃~+90℃
Protection Degree: IP 2X unmated; IP67, mated
Wire Size Range: 2.5mm2, 4mm2, 6mm2[AWG14, AWG12, AWG10]
Protection Class: 2
Withstanding Voltage: 1000 V DC

Packing List:
10 Pairs of Solar PV Connectors
